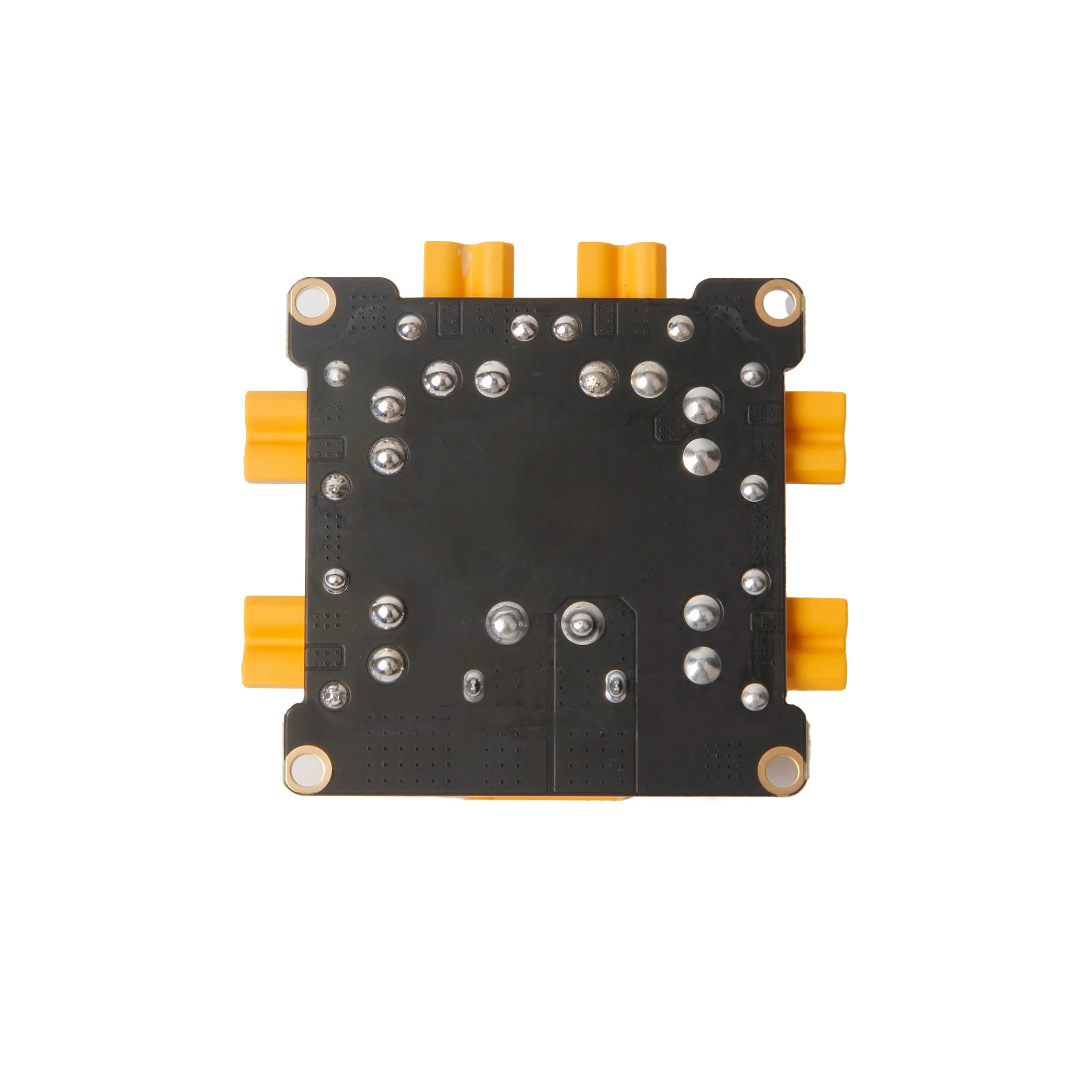

Power Distribution Board (PDB) 60A

Description:

This Power Distribution Board (PDB) is used for PM02, PM02D Power Module. Power modules with build-in power distribution such as the PM03, PM06, PM07 would not require this PDB.

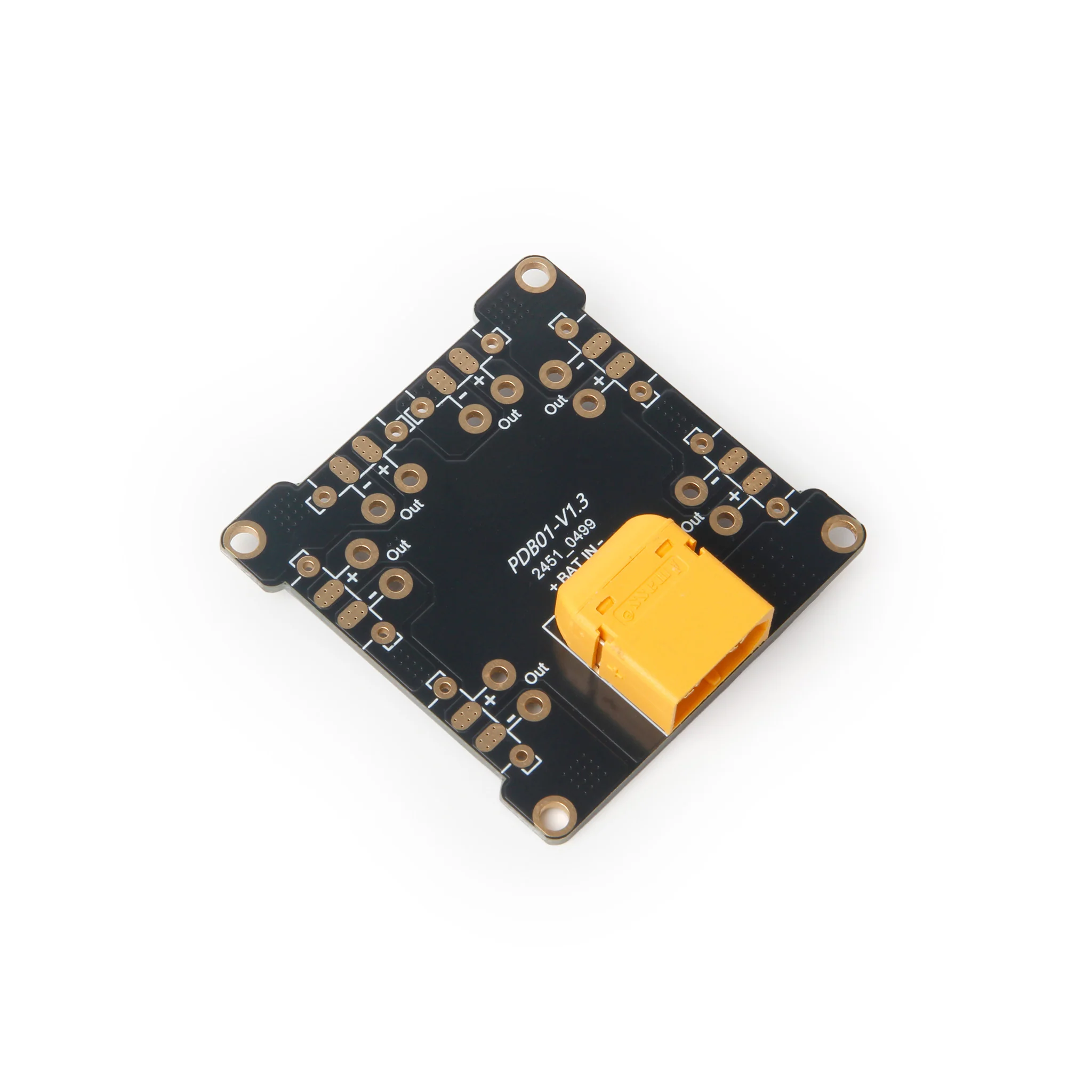

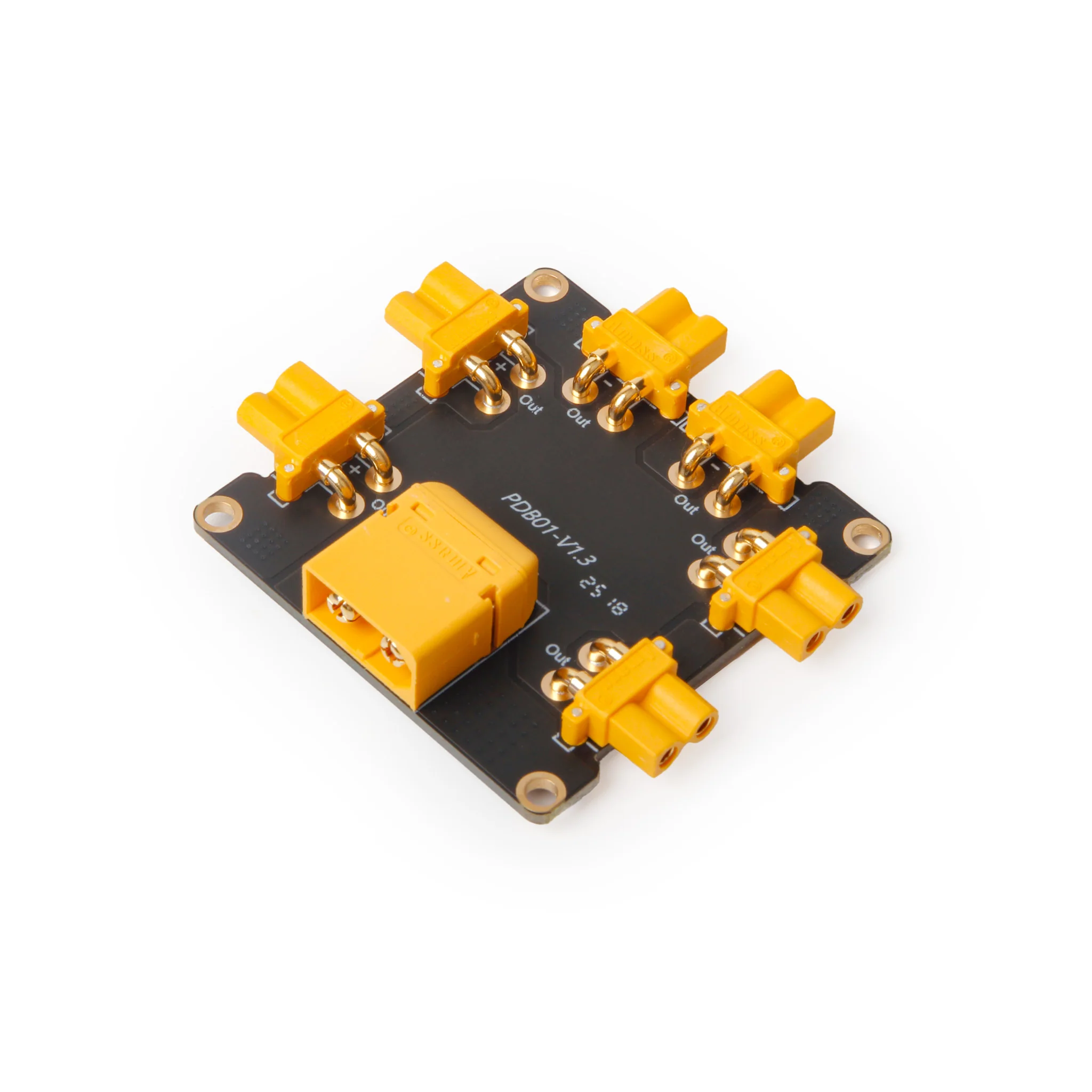

There are two options, with or without XT30 pre-soldered.  The option with XT30 pre-soldered goes perfectly with the ESC & Motor on the X500 V2.

  • Pre-soldered XT60 for Power Module & Battery
  • Rated Current: 60A
  • Max Current: 120A (<60 sec)
  • 45x45mm Mounting Holes

Dimensions


Wiring diagram

Description:

This Power Distribution Board (PDB) is used for PM02, PM02D Power Module. Power modules with build-in power distribution such as the PM03, PM06, PM07 would not require this PDB.

There are two options, with or without XT30 pre-soldered.  The option with XT30 pre-soldered goes perfectly with the ESC & Motor on the X500 V2.

  • Pre-soldered XT60 for Power Module & Battery
  • Rated Current: 60A
  • Max Current: 120A (<60 sec)
  • 45x45mm Mounting Holes

Dimensions


Wiring diagram
