Description:

This Power Distribution Board (PDB) 300A is designed to handle high-current applications, making it ideal for demanding power setups. It is compatible with PM08 series power modules and supports various high-current, multi-output configurations. The board utilizes 10 oz copper, ensuring superior thermal management and conductivity under heavy current loads.

Two connector configurations are available, You choose the orientation that best suits your project needs.

Power Distribution Board (PDB) 300A - Top Entry	Power Distribution Board (PDB) 300A - Side Entry
SKU:18138	SKU:18139

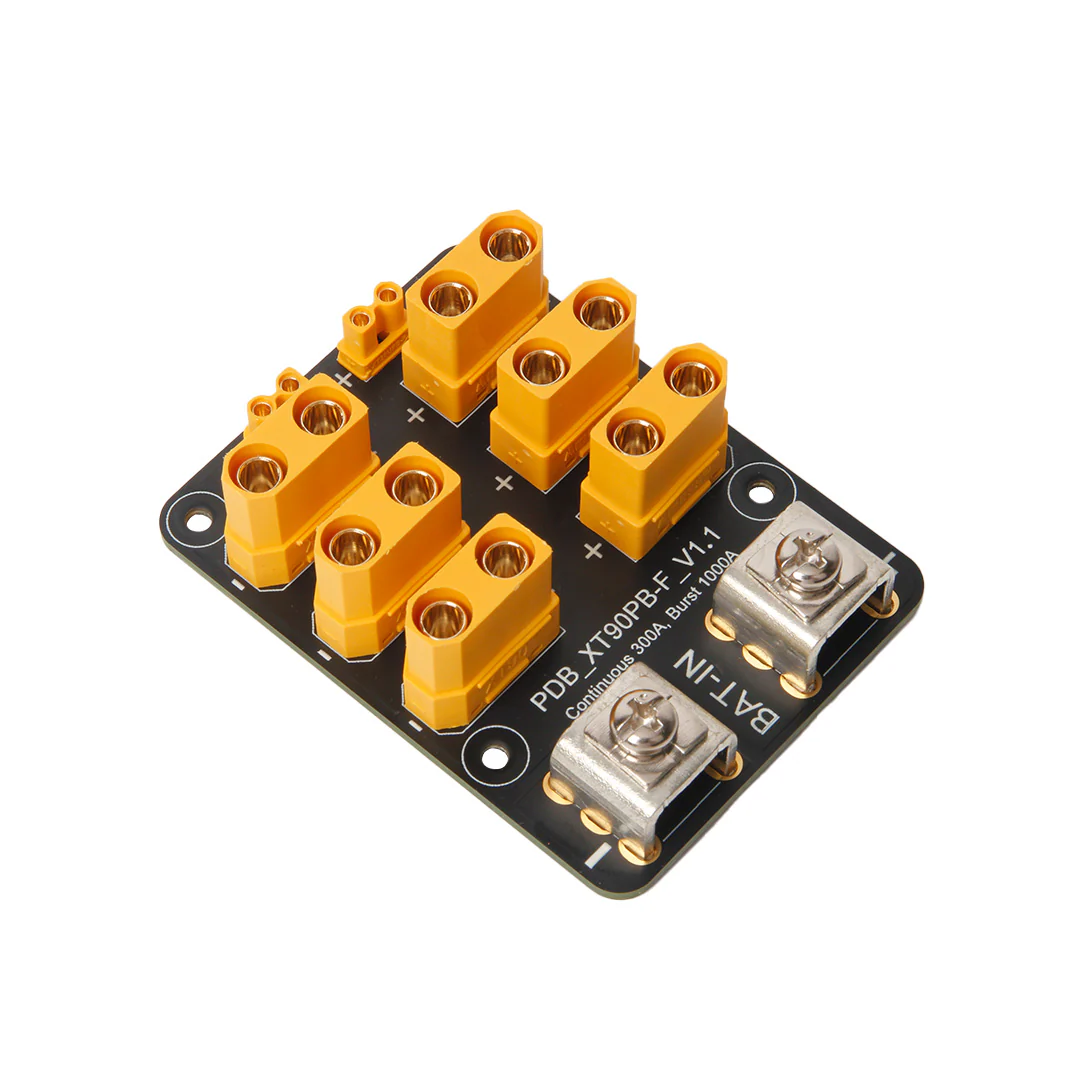

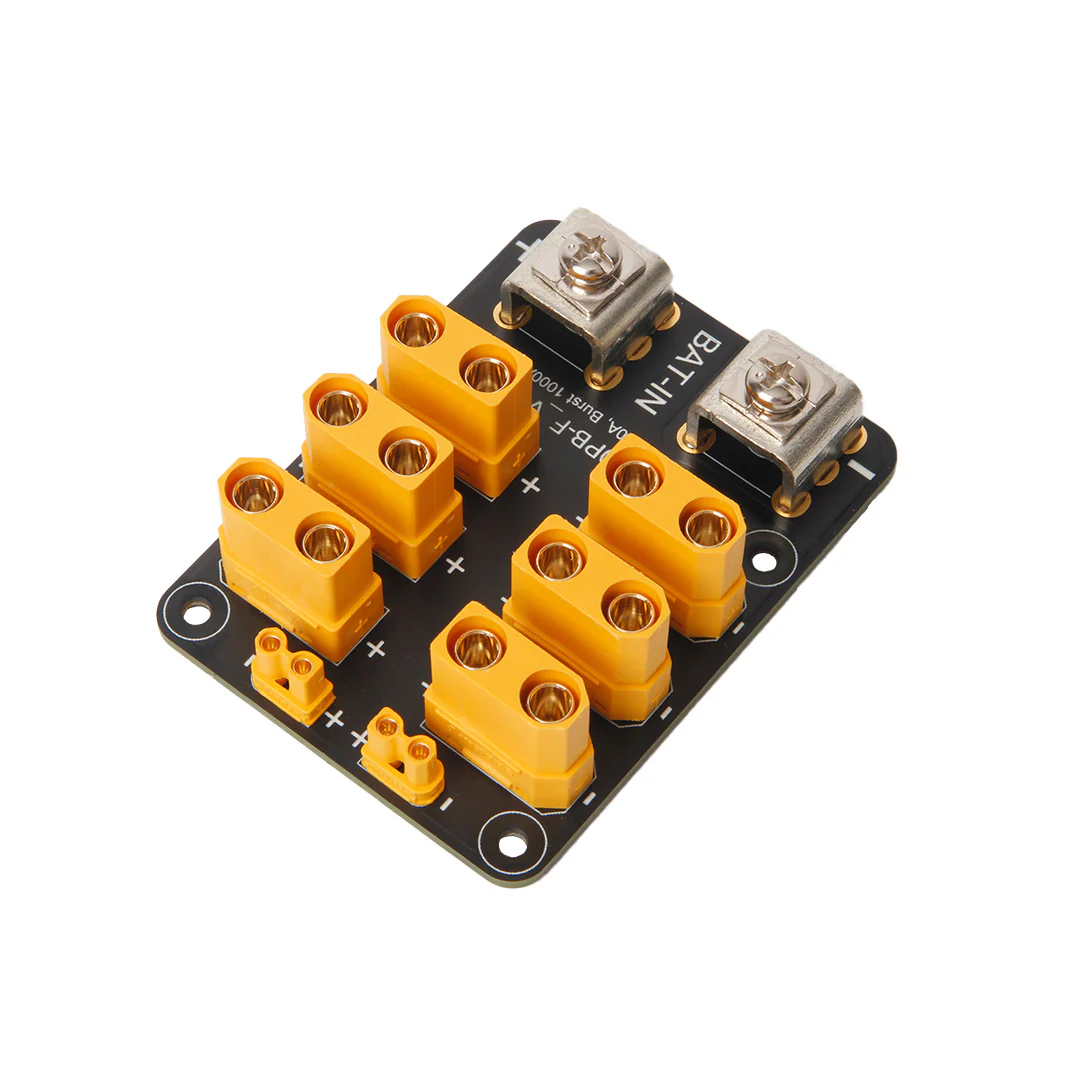

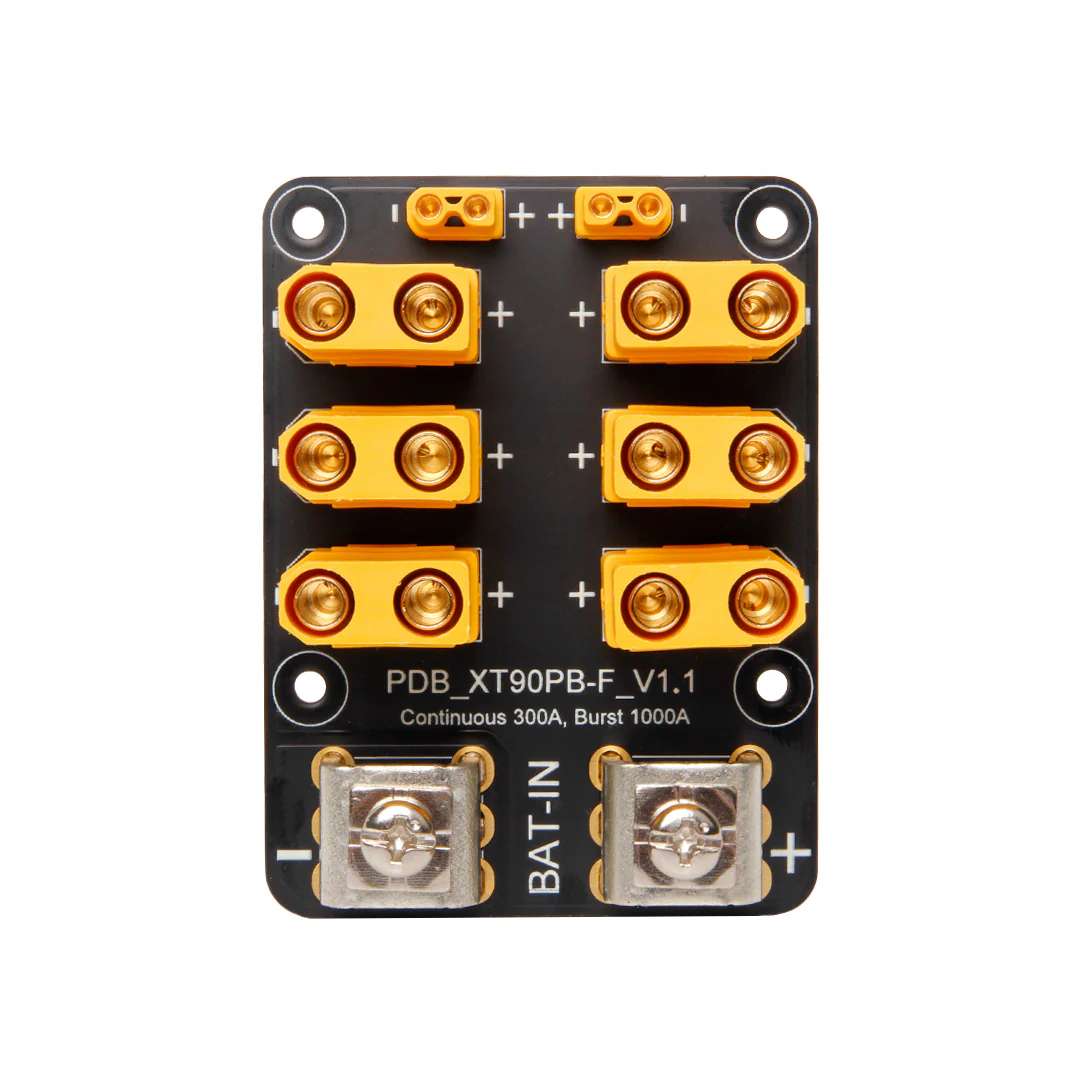

Pre-soldered with 6 upward-facing XT90 2 upward-facing XT30 connectors. High current screw terminals	Pre-soldered with 5 side-facing XT90 2 side-facing XT30 connectors. High current screw terminals



Feature

• Pre-soldered with XT90 & XT30
• Continuous Current: 300A
• Burst Current: 1000A
• 10 Oz Copper PCB Design
• M3 Mounting holes

Download:

• 3D CAD file

Dimensions:
