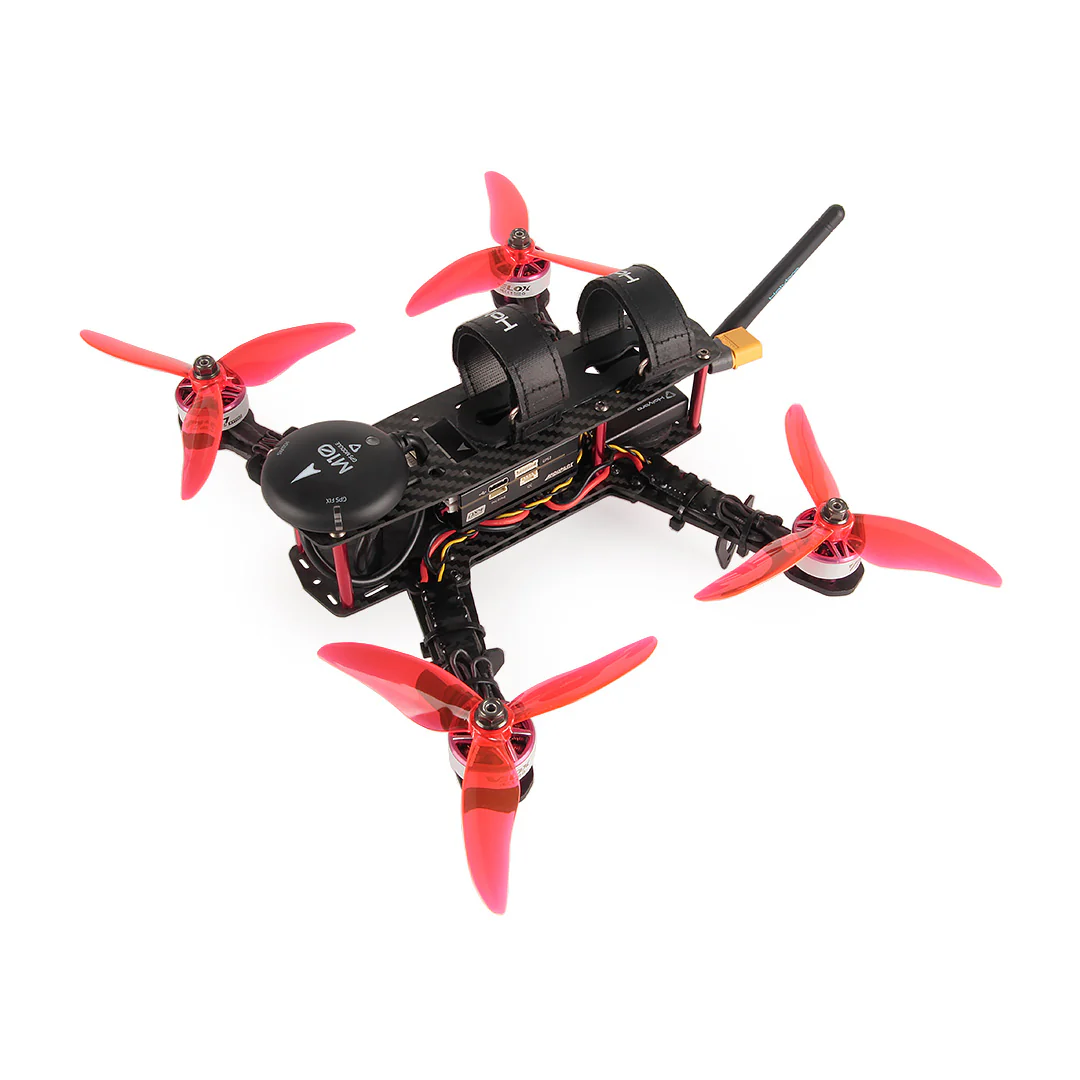

Product Description

The QAV250 Kit is the perfect way to get started developing on either PX4 or Ardupilot. It pairs a carbon fiber 250 racing frame and essential electronics with Pixhawk 6C mini  controller. The kit is easy to assemble. No soldering needed.

Pixhawk 6C Mini QAV250 Complete Kit Contents

• Pixhawk 6C mini flight controller
• PM06 v2 Micro Power Module

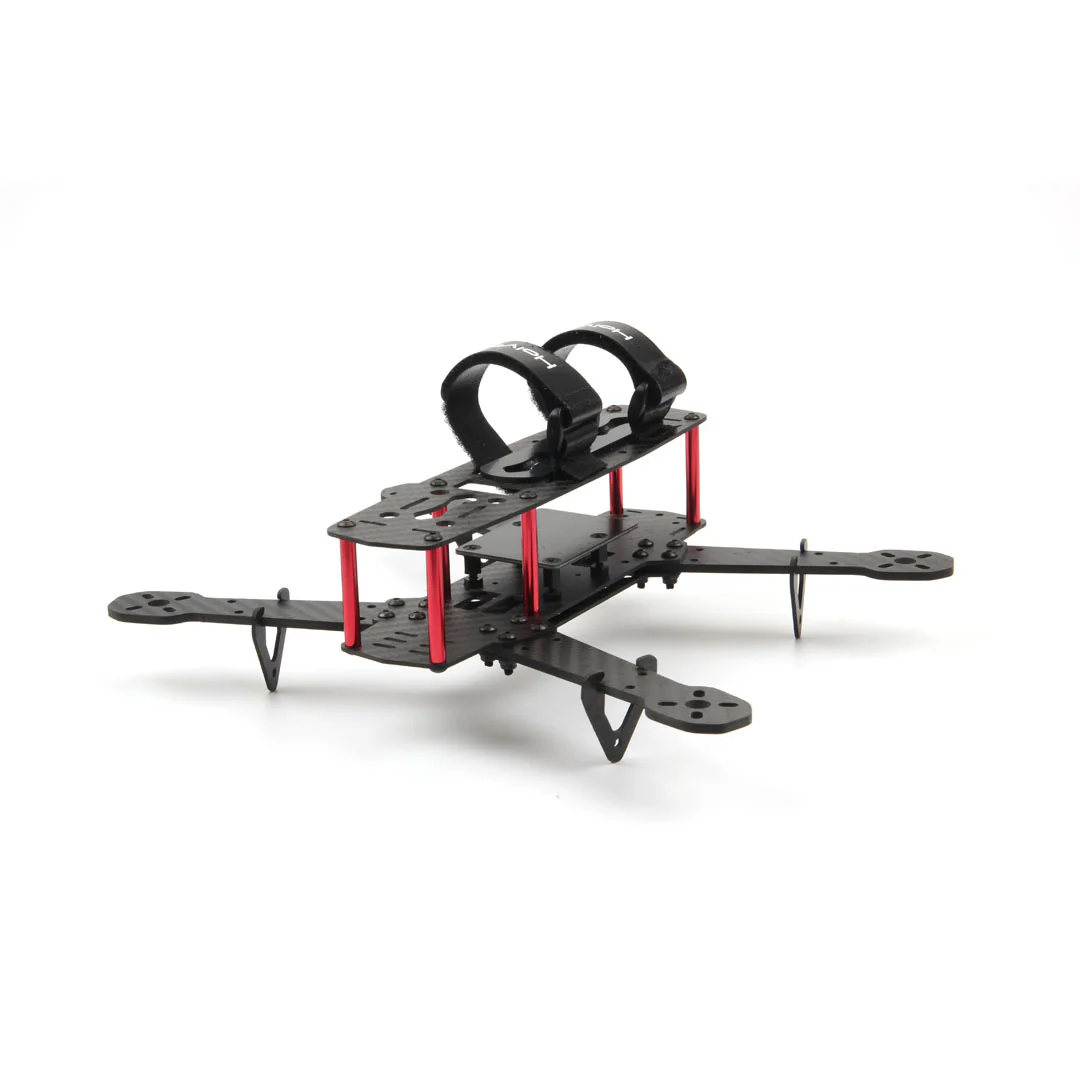

• Carbon fiber 250 airframe with hardware
• Motors - 2207 KV1950
• 5” Plastic Props
• M10 GPS

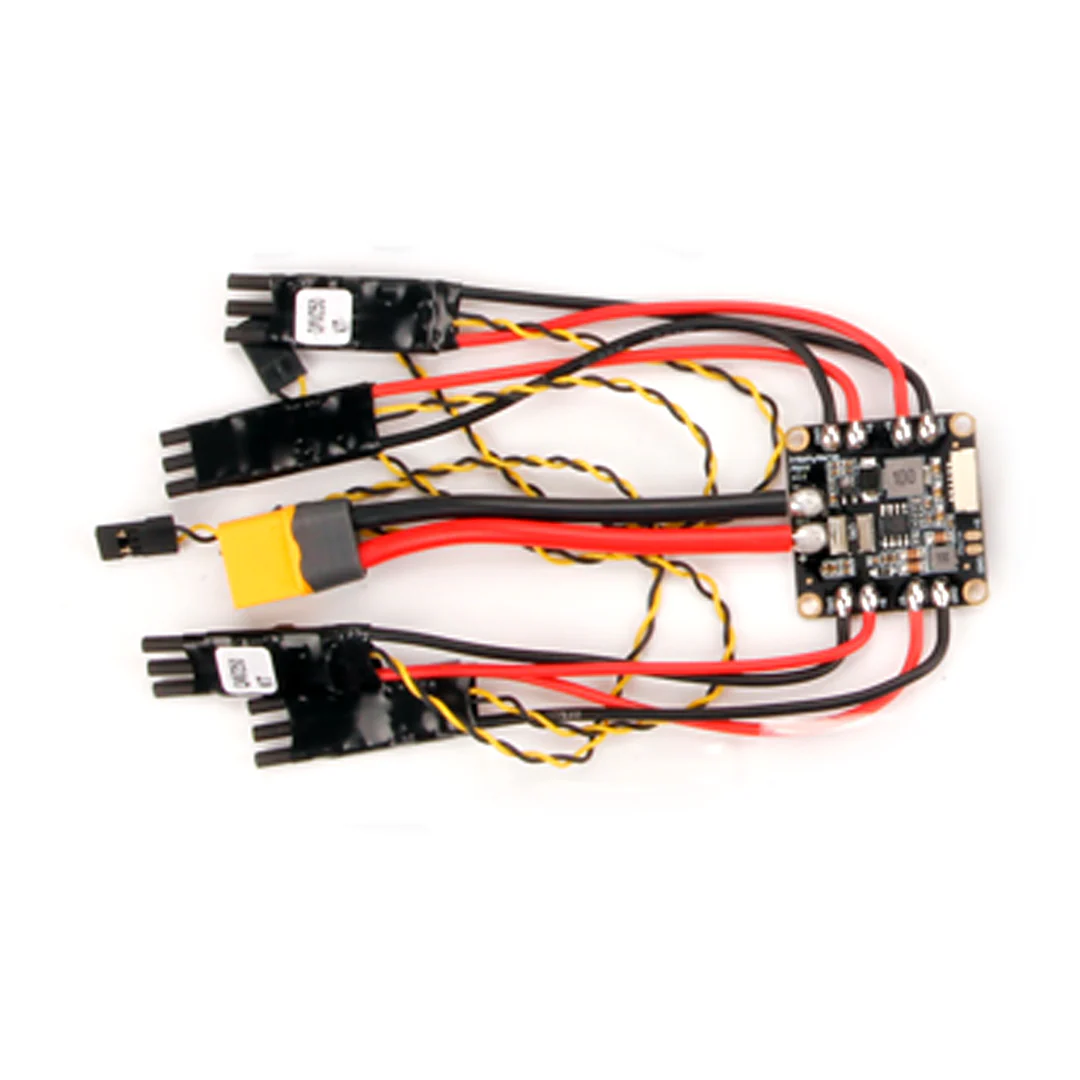

• Fully assembled Power Management Board with ESCs(BLHeli S ESC 20A)
• 433MHz Telemetry Radio/ 915MHz Telemetry Radio
• 5.8G FPV Video Transmitter
• Micro OSD V2
• Foxeer Predator 5 Micor FPV Camera
• Power and Radio Cables
• Battery Straps
• Dimensions:198*235*85mm
• Wheelbase:250mm
• Weight:456g

Note: No LiPo battery included.

Pixhawk 6C Mini QAV250 Basic Kit (SKU30150,30151) Contents

• Pixhawk 6C mini flight controller
• PM06 v2 Micro Power Module
• Carbon fiber 250 airframe with hardware
• Motors - 2207 KV1950
• 5” Plastic Props
• M10 GPS
• Fully assembled Power Management Board with ESCs(BLHeli S ESC 20A)
• 433MHz Telemetry Radio/ 915MHz Telemetry Radio
• Power and Radio Cables
• Battery Straps
• Dimensions:198*235*85mm
• Wheelbase:250mm
• Weight:440g

Note: No LiPo battery included.


QAV250 ARF Kit (SKU30149) Contents

• Carbon fiber 250 airframe with hardware
• Micro Power Module (PM06 v2)
• Motors - 2207 KV1950
• 5” Plastic Props
• Fully assembled Power Management Board with ESCs(BLHeli S ESC 20A)
• Battery Straps
• Dimensions:198*235*70mm
• Wheelbase:250mm
• Weight:347.2g

Note: No LiPo battery included.

Micro OSD V2  Connection

Recommended Battery Specification: 4S 2200~3000mAh Lipo
Max payload: up to 500g (With 4S 3000 mAh battery)

Manual:

QAV250 Assembly Guide

Some Tips:

https://docs.px4.io/main/en/frames_multicopter/holybro_qav250_pixhawk4_mini.html#quickstart-guide

Spare Parts-QAV250 Kit
