S500 V2 Kits
The Holybro S500 V2 Kit is affordable, lightweight, simple, easy to assemble, and requires no soldering. This is a complete kit that includes almost everything you need to fly. All you will need is a battery and an RC system (optional). It is perfectly compatible with various Holybro Flight Controllers such as the Pixhawk6C, Pix32 v6, etc.
This S500 frame is composed of a mixture of materials. The arms are made of high strength, ultra-durable Polyamide-Nylon composite material reinforced with carbon fiber rod through the center. The landing gear consists of 16mm & 10mm diameter carbon fiber tubes connected via plastic tee connectors that have been thickened and strengthened compared to the previous version.
This is an excellent, strong, and lightweight quadcopter frame with landing gear and 1.5mm top and bottom plates. The bottom plate also has a power distribution board (PDB) build in for neat and easy wiring. It also has an adjustable battery mount to achieve the perfect weight distribution. The bottom frame is ready to take a whole host of camera mounts and gimbals, making it perfect for various applications.
Assembly of this frame is super simple due to the pre-threaded sleeves for all the frame bolts, so lock nuts are not required. It utilizes one size bolts for the entire build, which means you only need one size hex for the assembly.

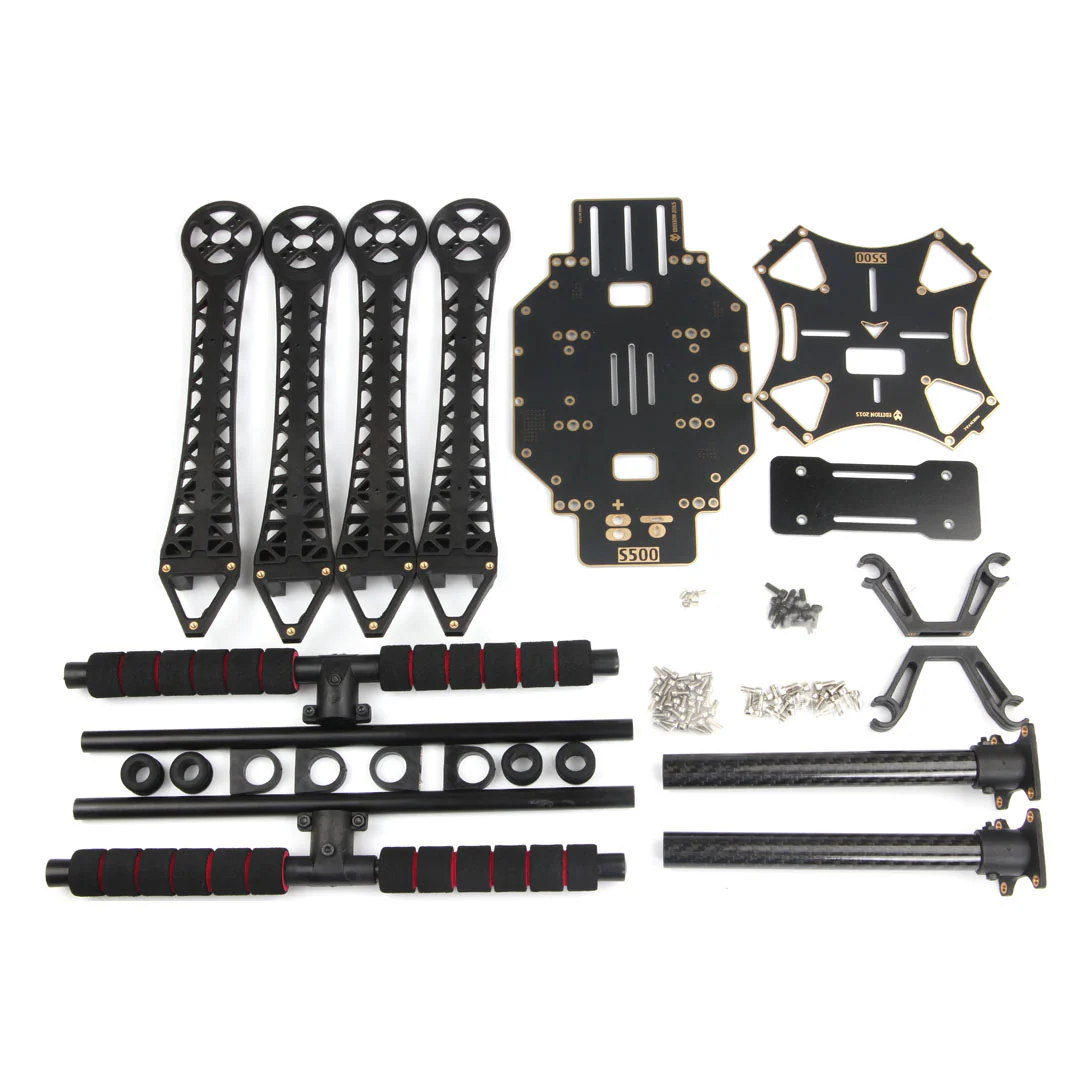

S500 V2 ARF Kit Contents:
- ARM adopts high strength plastics
- Motors - 2216 KV920（ V2 Update）
- BLHeli S ESC 20A
- Built-in PDB (Cont: 60A, Burst: 100A)
- Propeller 1045（ V2 Update）
- Battery Straps
- Dimensions:383*385*240mm
- Wheelbase:480mm
- Weight:782g
Recommendation Combination (Not Included):
- Flight Controller - Pixhawk 6C, Pixhawk 6X, Pixhawk 5x, Pixhawk 4, Pixhawk 4 Mini, Durandal, Pix32 v5
- Power Module - PM02D, PM03D Power Module, PM02 V3,
- GPS - DroneCAN M8N/M9N GPS, Holybro M8N/M9N GPS, H-RTK M8P/F9P Rover Lite & Helical
Battery Recommendation: 4S 3000-5000mAh 20C+ with XT60 Lipo Battery (Not Included)
Payload: 1500g (without Battery, 70% Throttle)
Flight time: ~18 minutes hover with no additional payload. Tested with a 5000mAh Battery
Manual:
Spare Parts-S500
The Holybro S500 V2 Kit is affordable, lightweight, simple, easy to assemble, and requires no soldering. This is a complete kit that includes almost everything you need to fly. All you will need is a battery and an RC system (optional). It is perfectly compatible with various Holybro Flight Controllers such as the Pixhawk6C, Pix32 v6, etc.
This S500 frame is composed of a mixture of materials. The arms are made of high strength, ultra-durable Polyamide-Nylon composite material reinforced with carbon fiber rod through the center. The landing gear consists of 16mm & 10mm diameter carbon fiber tubes connected via plastic tee connectors that have been thickened and strengthened compared to the previous version.
This is an excellent, strong, and lightweight quadcopter frame with landing gear and 1.5mm top and bottom plates. The bottom plate also has a power distribution board (PDB) build in for neat and easy wiring. It also has an adjustable battery mount to achieve the perfect weight distribution. The bottom frame is ready to take a whole host of camera mounts and gimbals, making it perfect for various applications.
Assembly of this frame is super simple due to the pre-threaded sleeves for all the frame bolts, so lock nuts are not required. It utilizes one size bolts for the entire build, which means you only need one size hex for the assembly.
S500 V2 ARF Kit Contents:
- ARM adopts high strength plastics
- Motors - 2216 KV920（ V2 Update）
- BLHeli S ESC 20A
- Built-in PDB (Cont: 60A, Burst: 100A)
- Propeller 1045（ V2 Update）
- Battery Straps
- Dimensions:383*385*240mm
- Wheelbase:480mm
- Weight:782g
Recommendation Combination (Not Included):
- Flight Controller - Pixhawk 6C, Pixhawk 6X, Pixhawk 5x, Pixhawk 4, Pixhawk 4 Mini, Durandal, Pix32 v5
- Power Module - PM02D, PM03D Power Module, PM02 V3,
- GPS - DroneCAN M8N/M9N GPS, Holybro M8N/M9N GPS, H-RTK M8P/F9P Rover Lite & Helical
Battery Recommendation: 4S 3000-5000mAh 20C+ with XT60 Lipo Battery (Not Included)
Payload: 1500g (without Battery, 70% Throttle)
Flight time: ~18 minutes hover with no additional payload. Tested with a 5000mAh Battery
Manual:
Spare Parts-S500
Original: $42.00
-70%$42.00
$12.60Description
The Holybro S500 V2 Kit is affordable, lightweight, simple, easy to assemble, and requires no soldering. This is a complete kit that includes almost everything you need to fly. All you will need is a battery and an RC system (optional). It is perfectly compatible with various Holybro Flight Controllers such as the Pixhawk6C, Pix32 v6, etc.
This S500 frame is composed of a mixture of materials. The arms are made of high strength, ultra-durable Polyamide-Nylon composite material reinforced with carbon fiber rod through the center. The landing gear consists of 16mm & 10mm diameter carbon fiber tubes connected via plastic tee connectors that have been thickened and strengthened compared to the previous version.
This is an excellent, strong, and lightweight quadcopter frame with landing gear and 1.5mm top and bottom plates. The bottom plate also has a power distribution board (PDB) build in for neat and easy wiring. It also has an adjustable battery mount to achieve the perfect weight distribution. The bottom frame is ready to take a whole host of camera mounts and gimbals, making it perfect for various applications.
Assembly of this frame is super simple due to the pre-threaded sleeves for all the frame bolts, so lock nuts are not required. It utilizes one size bolts for the entire build, which means you only need one size hex for the assembly.
S500 V2 ARF Kit Contents:
- ARM adopts high strength plastics
- Motors - 2216 KV920（ V2 Update）
- BLHeli S ESC 20A
- Built-in PDB (Cont: 60A, Burst: 100A)
- Propeller 1045（ V2 Update）
- Battery Straps
- Dimensions:383*385*240mm
- Wheelbase:480mm
- Weight:782g
Recommendation Combination (Not Included):
- Flight Controller - Pixhawk 6C, Pixhawk 6X, Pixhawk 5x, Pixhawk 4, Pixhawk 4 Mini, Durandal, Pix32 v5
- Power Module - PM02D, PM03D Power Module, PM02 V3,
- GPS - DroneCAN M8N/M9N GPS, Holybro M8N/M9N GPS, H-RTK M8P/F9P Rover Lite & Helical
Battery Recommendation: 4S 3000-5000mAh 20C+ with XT60 Lipo Battery (Not Included)
Payload: 1500g (without Battery, 70% Throttle)
Flight time: ~18 minutes hover with no additional payload. Tested with a 5000mAh Battery
