Overview

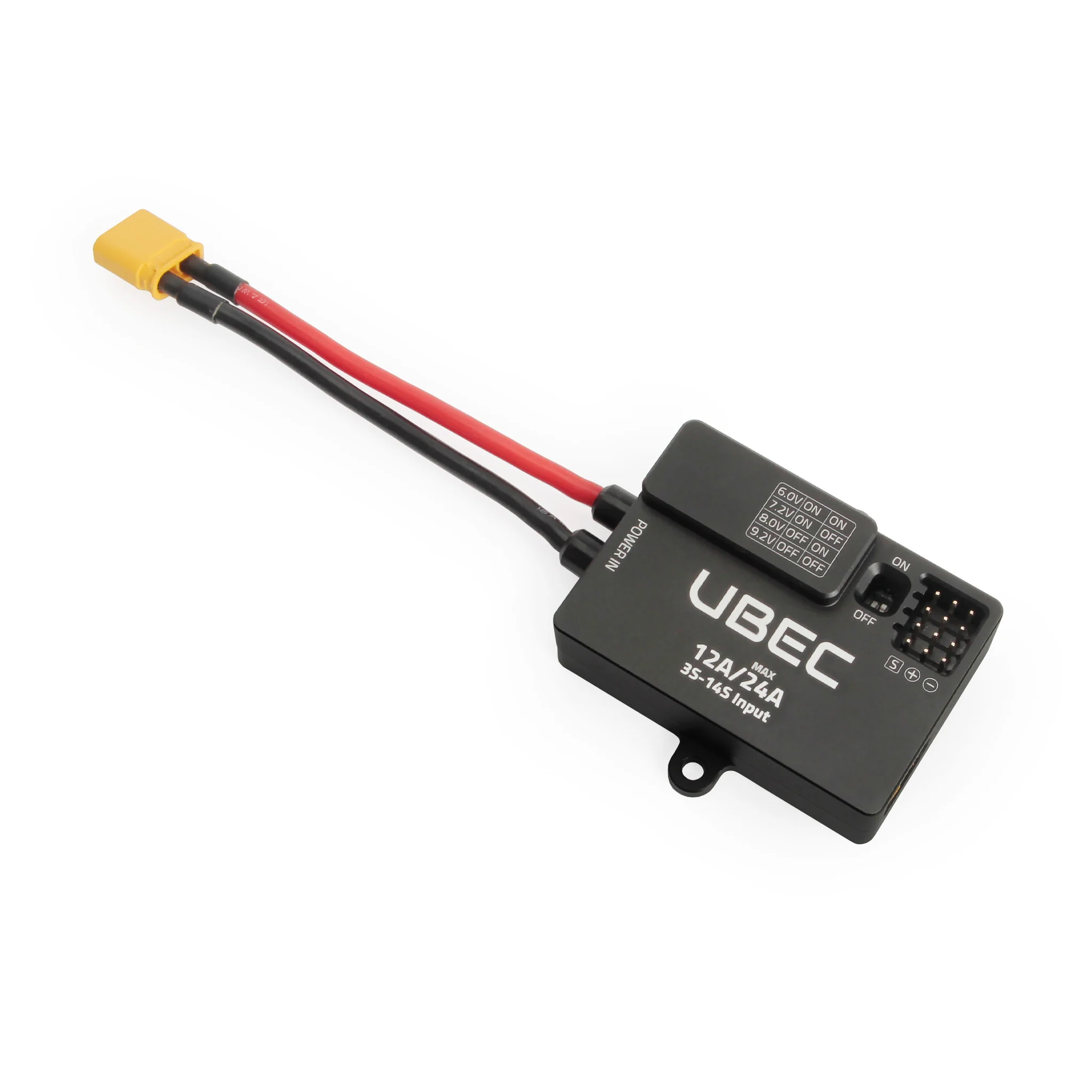

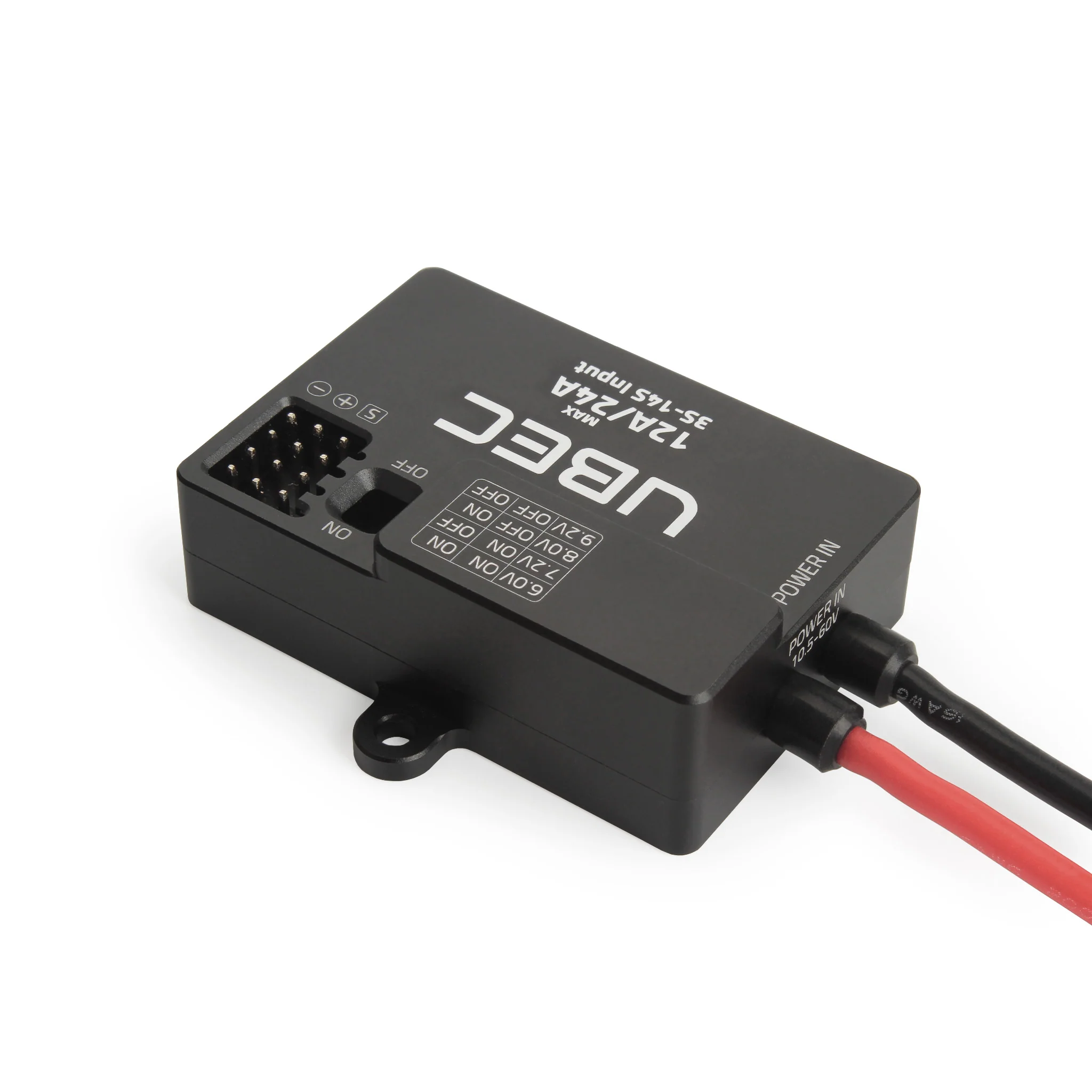

UBEC 12A (3-14S) is a synchronous step-down regulator from a high voltage or widely varying input supply. It draws the DC voltage from a 3-14S LiPo battery and drops the voltage to a level suitable for receivers and other electronic devices, and keeps providing a stable current output of up to 12Amp. The output voltage can be adjusted by the onboard DIP switches.

Features

• High efficiency DC-DC regulator chip for transfer efficiency of over 90%
• Adjustable output voltage (6.0V/7.2V/8.0V/9.2V) applicable for devices with different voltages
• 4-channel parallel header pin outputs for servos
• XT30 output for high current devices

• Multiple protections including over-current, (output end) short circuit, overheat, and low-voltage cutoff

• Metal housing for quick heat dissipation and less electromagnetic interference.

Specifications

• Input voltage: 3~14S (XT30)
• Output voltage: 6.0V/7.2V/8.0V/9.2V (Adjustable by using onboard DIP Switches)
• Output Current

  • Continuous: 12A
  • Burst: 24A
• Size: 48x33.6x16.3 mm

• Weight: 47.8g

Dimension:

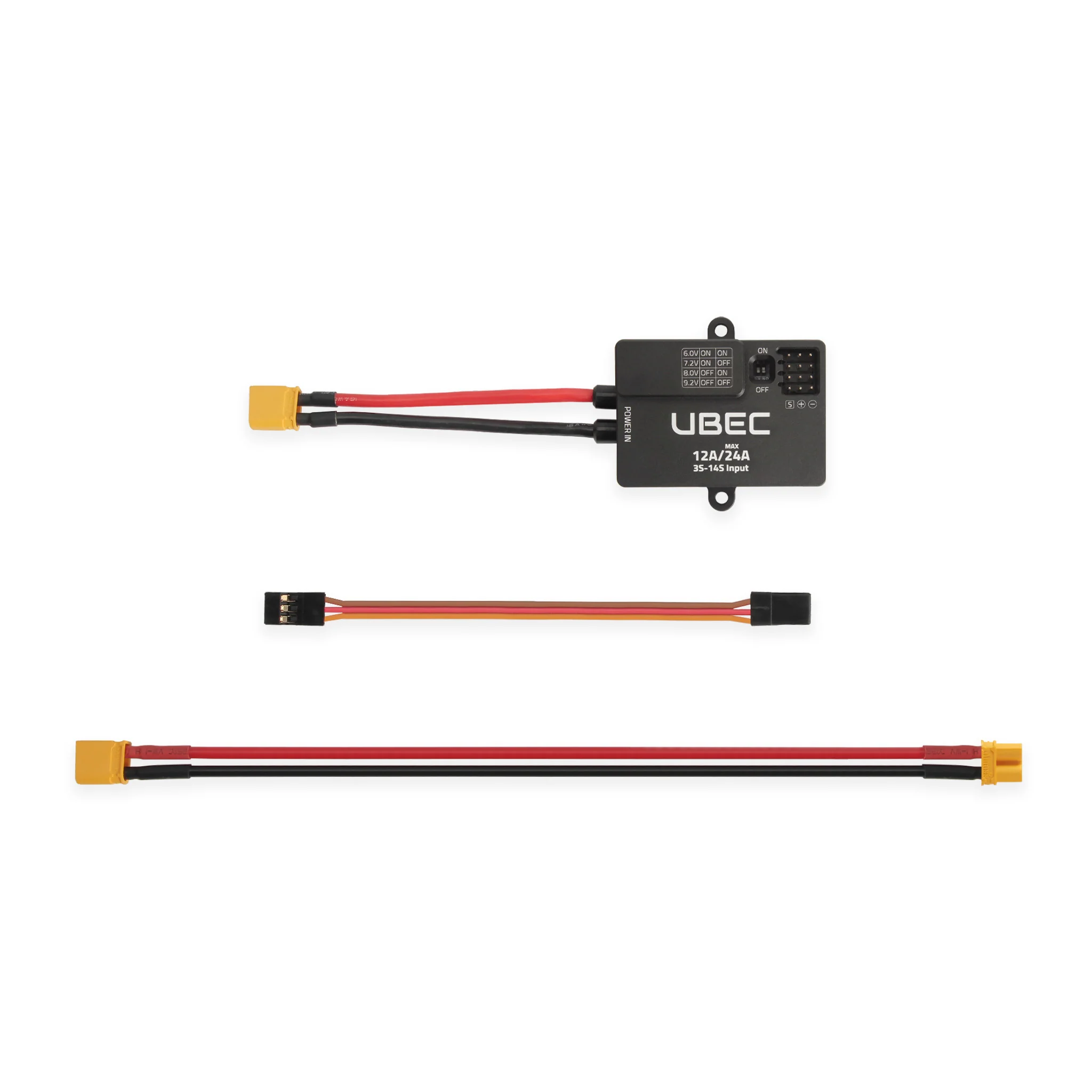

Package Includes：
